3,5 motore giapponese ruvido diesel di Yanmar 4TNE98 (EUIII) del carrello elevatore del terreno del compatto 4WD di tonnellata

Informazioni di base
Luogo di origine: La Cina
Marca: VMAX
Certificazione: CE,BV,SGS,ISO9001
Numero di modello: CPCD35
Quantità di ordine minimo: 1 unità
Prezzo: USD25500-USD24850/unit
Imballaggi particolari: pacchetto nudo
Tempi di consegna: 25-30 giorni
Termini di pagamento: , T/T, L/C, D/A, D/P, Western Union, MoneyGram
Capacità di alimentazione: 5000 SETS/year
Circostanza: Nuovo Souce di potere: Motore diesel
Lunghezza della forcella: 1070mm Larghezza della forcella: 125mm
Tipo: Camion di pallet autoalimentato, carrello elevatore, carrello elevatore a forcale diesel e diesel Servizio di assistenza al cliente fornito: Supporto di terzi d'oltremare disponibile, ingegneri disponibili assistere macchinario oltremare, su
Minuto di altezza di elevazione: 3000mm Altezza di elevazione massima: 6000mm
Certificazione: CE,ISO,CE/ISO9001,ISO/SIQ/CE capacità di carico: 3500kg
Centro del carico: 500mm Tipo di potere: carrello elevatore diesel
Evidenziare:

3.5 Tonne Rough Terrain Forklift

,

4WD Diesel Rough Terrain Forklift

,

4TNE98 Rough Terrain Forklift

VMAX factory 3.5T compact 4WD Diesel Rough Terrain Forklift with Yanmar 4TNE98(EUIII) Japanese engine



Product Characteristics of CPCD35 Diesel Rough Terrain Forklift:

  • Integrated central control box the reliability of electric system
  • Ergonomical design ensures best operation
  • Energy-saving hydraulic system decreases fuel consumption
  • High-quality hydraulic hoses, no oil leakage
  • Wide-view mast design improves the productivity and safety
    • CPCD35 Diesel Rough Terrain Forklift Standard Installment:
      •

    --Model CPCD35,load capacity 3500kg.

    --Automatic transmission, 3M 2stage Mast.

    --with Mitsubishi S4S(EUIII) / Yanmar 4TNE98(EUIII) Japanese engine,

    --1220mm fork,Pneumatic tyes.

    --Safety seat with steady belt,warning light.

    --Free tool box,spare parts.



    CPCD35 Diesel Rough Terrain Forklift SPECIFICATION
    Model
    unit
    CPCD35
    Power type

    Diesel
    Rated capacity
    kg
    3500
    Load center
    mm
    500
    Mast Lifting height
    mm
    3500
    Free lift height
    mm
    170
    Fork size(L*W*T)
    mm
    1220*125*50
    Tilting Angles(Front/Rear)
    deg
    6°/12°
    Front overhang
    mm
    498
    Exterior Size
    Length without fork
    mm
    2693
    Overall width
    mm
    1225
    Mast drop
    mm
    2180
    Max.lift
    mm
    4262
    Overhead guard height
    mm
    2090
    Min Turning Radius
    mm
    2420
    Min.intersecting aisle
    mm
    2400
    Speeds
    Max Driving speeds
    km/h
    19/19
    Lifting speeds
    mm/s
    330/370
    Lowering speeds
    mm/s
    350/400
    Max.grade ability(with/without full load
    %
    16.5/20
    Total weight
    kg
    4700
    Tires
    Front

    28*9-15-12PR
    Rear

    6.5-10-10PR
    Wheelbase

    mm
    1700
    Tread
    Front
    mm
    1000
    Rear
    mm
    970
    Min.ground clearance
    mm
    135
    Engine
    Model

    XINCHANG490BPG
    Rated output
    kw/rpm
    42/2650
    Rated torque

    174/1800-1900
    No.of cylinder
    L
    4-90*105
    Displacement
    L
    2.98
    Fuel tank capacity


    60

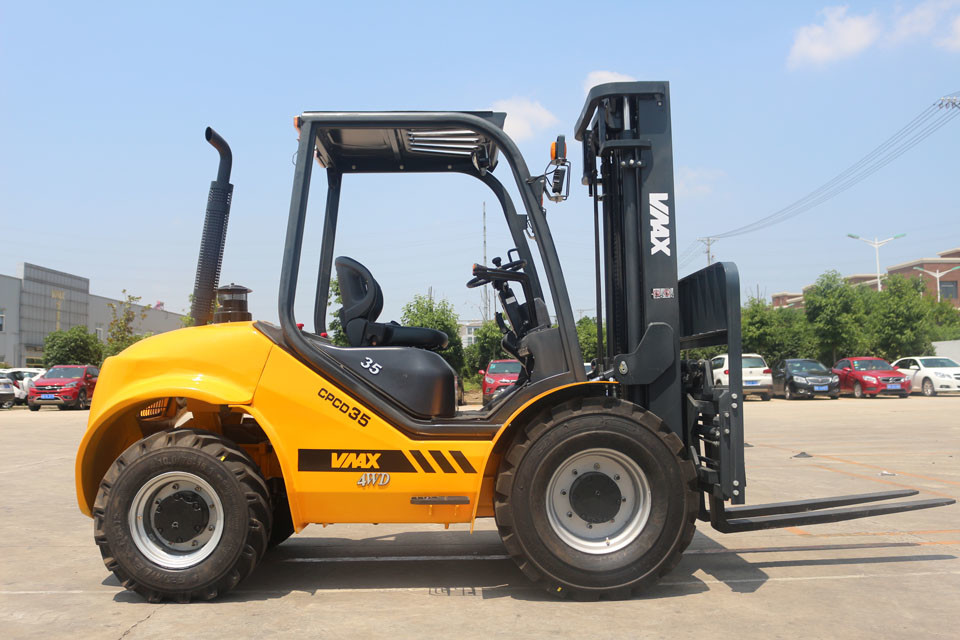

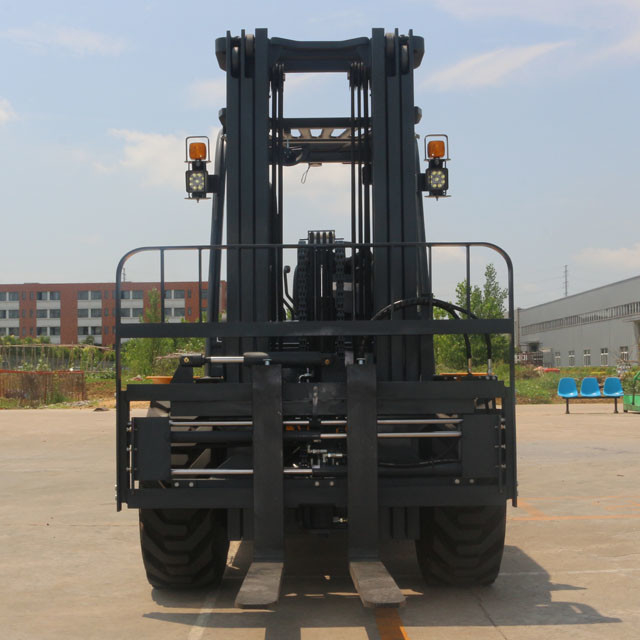

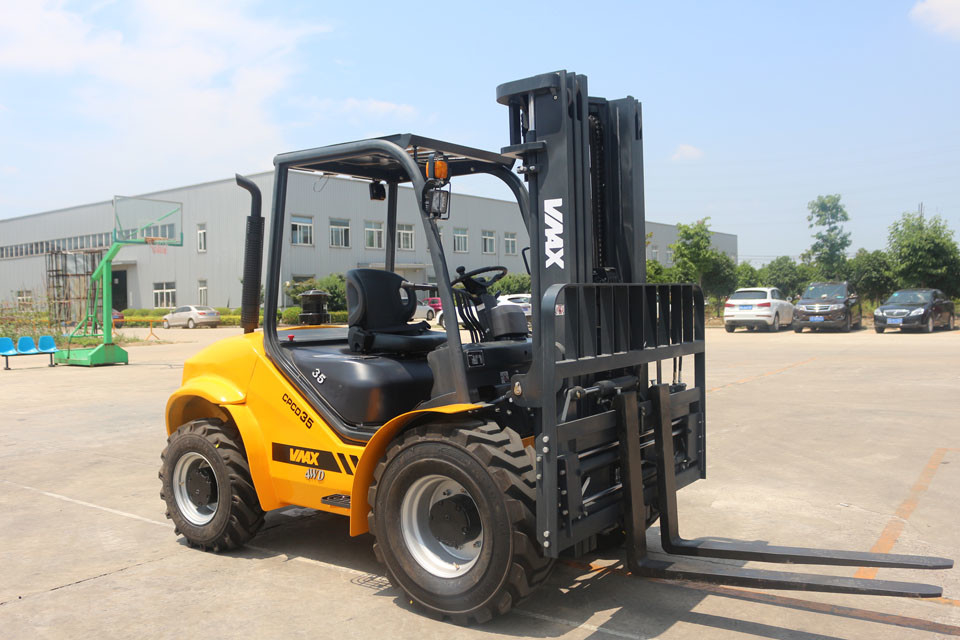

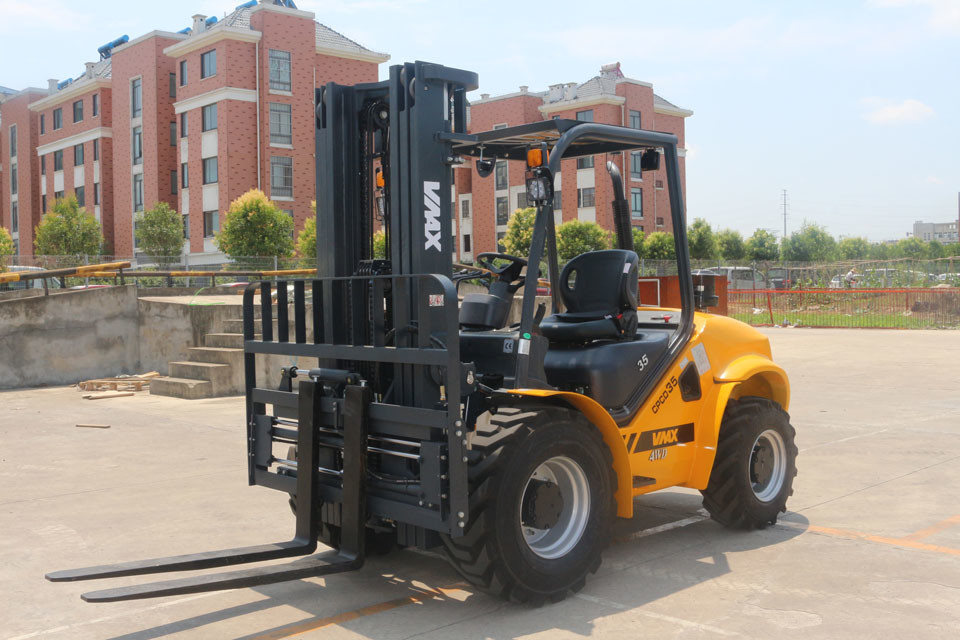

    3,5 motore giapponese ruvido diesel di Yanmar 4TNE98 (EUIII) del carrello elevatore del terreno del compatto 4WD di tonnellata 03,5 motore giapponese ruvido diesel di Yanmar 4TNE98 (EUIII) del carrello elevatore del terreno del compatto 4WD di tonnellata 13,5 motore giapponese ruvido diesel di Yanmar 4TNE98 (EUIII) del carrello elevatore del terreno del compatto 4WD di tonnellata 23,5 motore giapponese ruvido diesel di Yanmar 4TNE98 (EUIII) del carrello elevatore del terreno del compatto 4WD di tonnellata 3

    3,5 motore giapponese ruvido diesel di Yanmar 4TNE98 (EUIII) del carrello elevatore del terreno del compatto 4WD di tonnellata 4

    Features of CPCD35 Diesel Rough Terrain Forklift :



    Samuk 3.5ton compact 4WD Diesel Rough Terrain Forklift, with 500mm load center, with Mitsubishi S4S(EUIII) / Yanmar 4TNE98(EUIII) Japanese engine, with TCM technology hydraulic transmission, power shift, with limited slip differential lock, with safety system for engine starting, with seat,belt, lights, buzzer, horn,rotating beacon, with industrial pneumatic front tyres, with 1220mm fork length, with 3000mm duplex mast, without side shifter. (STANDARD CONFIGURATIONS)



    Company Introduction





    Anhui VMAX HEAVY INDUSTRY Co., Ltd.. is located in Lu'an, Anhui,China. We are one of the biggest forklift manufacturers in China, which has 67,000 square meter area workshop and outputs 5,000 sets forklifts annually. We have different kinds of large blazing cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other high-class machines and testing equipment, which ensure perfect quality of each forklift from VMAX. Now our products include counter-balance diesel for klift, battery forklift, gas/lpg forklift, pallet truck, stacker, reach truck, mast mobile container crane, etc. With firstclass technology and stable quality, VMAX products won the appreciation form majority of overseas customers. Our products have been exported to Europe, America, the Middle East, Southeast Asia, Africa and many other countries and regions. More than 400 VMAX members offer you products with top-class service. We sincerely welcome you to visit


    3,5 motore giapponese ruvido diesel di Yanmar 4TNE98 (EUIII) del carrello elevatore del terreno del compatto 4WD di tonnellata 5

    3,5 motore giapponese ruvido diesel di Yanmar 4TNE98 (EUIII) del carrello elevatore del terreno del compatto 4WD di tonnellata 6

    3,5 motore giapponese ruvido diesel di Yanmar 4TNE98 (EUIII) del carrello elevatore del terreno del compatto 4WD di tonnellata 7

    3,5 motore giapponese ruvido diesel di Yanmar 4TNE98 (EUIII) del carrello elevatore del terreno del compatto 4WD di tonnellata 8

    After Sales Service

    Our Services & Strength

    Vmax always treat after-sale service as important as sale. Nowadays more than 100 agents around the world can supply Vmax professional after-sale service.

    All the product of Vmax supplied with one year or 2000 working hours(which occurs first) period quality warranty.



    automatic lift truck OPTION:



    As a professional manufacturer of forklift, we also can offer you customized service,

    the following items are optional:

    Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m

    side shifter, fork positioner,longer forks, fork extension

    For the details of customized configurations and options, please contact with us.

    VMAX professional service will be impressed on you.



    OTHERS :
    A:date of delivery:15-25days after received the deposit
    B:payment terms:T/T(30% deposit,balance paid before shipment).Or L/C at sight
    C:Guaranty period: one year or 2000hours upon receiving goods.
